FMC-1000M
Web Smart OAM Managed 10/100/1000Base-T to 100/1000Base-X GbE Switch

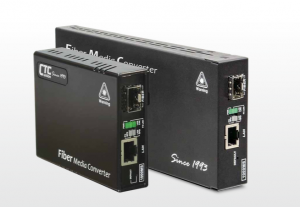

The FMC-1000M(S) family are Web Smart OAM/IP managed Gigabit Ethernet 10/100/1000Base-T to 100/1000Base-X fiber Ethernet Switch, which provide simple control and setting function on each Ethernet port through out of band network via a Web browser. The FMC-1000M(S) Ethernet Switch give you the fiber cabling connector, SFP-LC(1000MS) and fixed type 1×9 SC connector(1000M). Both multi-mode and single mode Switch models are available as well as BiDi which allows bi-directional transmissions using only a single fiber cable. Auto-negotiation will automatically tailor to convert both half-duplex and full-duplex signals, according to IEEE 802.3u standards. LED indicators signal the power status of the Switch, UTP port speed, Link, and duplex status, FX port Link and duplex status.
Features:
▪ 10/100/1000Base-T to 100/1000Base-X Ethernet Switch
▪ Auto-Cross over for MDI/MDIX in TP port
▪ Auto-Negotiation or Manual mode in TP port
▪ Supports flow control Enable or Disable
▪ Supports Jumbo Frame 9K Packet
▪ Ingress/Egress Bandwidth control
▪ Supports IEEE 802.3ah OAM management
▪ Firmware upgrade via Web
▪ Digital Diagnostic (DOM) SFP Support
▪ Management Password Setting
▪ Dying gasp (remote power failure detection)
▪ Supports Link Fault Pass-Through ( LFPT ) Function ▪ Supports Auto Laser Shutdown (ALS) Function
▪ Web management on stand-alone.
▪ Supports D/D function for SFP fiber transceiver
▪ Supports On-Line F/W upgrade (local) by the Web manager
▪ Supports 16 Tag VLAN Group
▪ RMON counters
▪ May be concentrated into FMC-CH17 or FMC-CH08 chassis (Adapter Type only)
▪ May be used as a remote to FRM-1000M(S) ▪ Wall-Mountable
