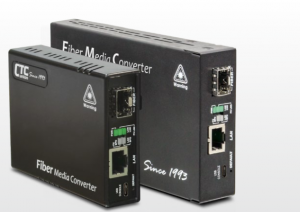

FMC-2000MS

Web Smart OAM Managed 10/100/1000Base-T to 100/1000Base-X SFP GbE Switch

The FMC-2000MS family are Web Smart OAM/IP managed Gigabit Ethernet 10/100/1000Base-T to 100/1000Base-X fiber Ethernet Switch/Converter, which provide simple control and setting function on each Ethernet port through in band network via a Web browser. The FMC-2000MS Ethernet Switch/Converter gives you the fiber cabling connector, SFP-LC. Both multi-mode and single mode models are available as well as BiDi which allows bi-directional transmissions using only a single fiber cable. Auto-negotiation will automatically tailor to convert both half-duplex and full-duplex signals, according to IEEE 802.3u standards. LED indicators signal the power status of the Switch, UTP port speed, Link, and duplex status, FX port Link and duplex status.

Features:

  • 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Switch
  • Auto-Cross over for MDI/MDIX in TP port
  • Auto-Negotiation or Manual mode in TP port
  • Supports flow control Enable or Disable
  • Supports Jumbo Frame 16K Packet
  • Ingress/Egress Bandwidth control
  • Supports IEEE 802.3ah OAM management
  • Supports SNMPv1
  • Digital Diagnostic (DOM) SFP Support
  • Management Password Setting
  • Dying gasp (remote power failure detection)
  • Supports Link Fault Pass-Through ( LFPT ) Function
  • Supports Auto Laser Shutdown (ALS) Function
  • USB console port and Web management on stand-alone.
  • Supports On-Line F/W upgrade (local) by the Web manager
  • Supports 16 Tag VLAN Groups
  • RMON counters
  • May be concentrated into FMC-CH17 or FMC-CH08 chassis (Adapter Type only)
  • May be used as a remote to FRM220-2000MS
  • Wall-Mountable
